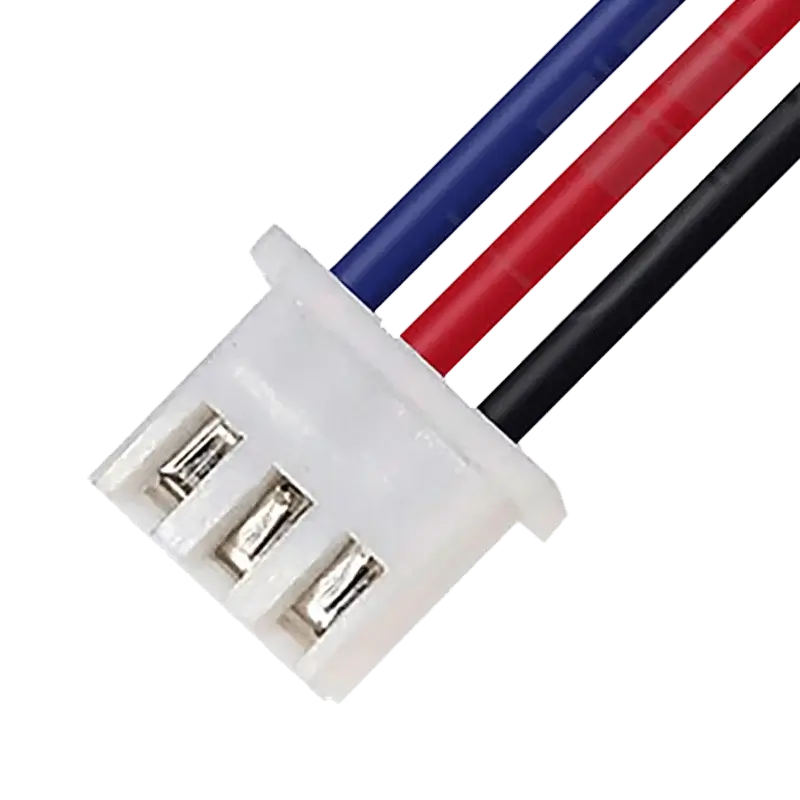

Wire Harness JST XH Connector 2.5mm pitch Terminal

Automotive Cable Assemblies / Wire-to-Board0748

The JST XH 2.5mm pitch connector is an excellent choice for wire harness assemblies where space-saving, reliability, and compliance with industry standards are critical.

Key Features

  • Original double-leaf contact design
  • Box-shaped shrouded header
  • Header is also available with boss
  • The 4 pin version conforms to JEMA's
  • Home Automation (HA terminal) standards.

Description

The JST XH 2.5mm Pitch Connector is a highly reliable, versatile wire-to-board connector designed for modern electronic applications. With a compact assembled board height of just 9.8mm, this connector is ideal for space-saving wire harness assemblies in low-cost consumer electronics and compact devices. Its compatibility with various wire sizes and robust design ensure a secure, lasting connection, making it suitable for a wide range of applications. The XH series meets industry standards, offering a reliable solution for low-profile applications that demand both performance and durability.

Specification

Item Specification
Compatible JST XH connector
Pitch - Mating Interface 2.5mm
Circuits 2-16 pins
Current rating 3 A AC/DC (AWG #22)
Voltage rating 250 V AC/DC
Temperature range -25°C to +85°C (including temperature rise in applying electrical current)
Contact resistance Initial value: 10 mΩ max.
After environmental tests: 20 mΩ max.
Insulation resistance 1,000 MΩ min.
Withstanding voltage No breakdown or flashover while applying 1,000 VAC for one minute.
Applicable wire range Conductor size: AWG #30 to AWG #22
Insulation O.D.: ϕ 0.9 mm to ϕ 1.9 mm
Applicable PC board thickness 1.6 mm

Example part numbers

Numbers in bold can be changed to order connectors with a different number of positions. Can be customized according to specific requirements.

Content Part Number
Contact AWG 22-28 (low insertion force) SXH-001T-P0.6N
Contact AWG 22-28 (standard insertion force) SXH-001T-P0.6
Housing 2 position XHP-2
Housing 4 position XHP-4
Header vertical 1 position (with boss, not available without) B1B-XH-AM(LF)(SN)(P)
Header vertical 2 position B2B-XH-A(LF)(SN)
Header vertical 4 position B4B-XH-A(LF)(SN)
Header vertical 4 position (with boss) B4B-XH-AM(LF)(SN)
Header right angle 2 position S2B-XH-A(LF)(SN)
Header right angle 4 position S4B-XH-A(LF)(SN)
Hand crimp tool AWG 22-28 WC-110
Wire Harness assembly Various XH and XH compatible connector parts
Wire Harness assembly Various XH and XH compatible connector parts

Applications:

  • Consumer electronics
  • Low-profile devices
  • Home automation systems

Tailored Solutions

  • Accept OEM/ODM design
  • Accept Small MOQ and Trial order
  • Engineering support in 2D or 3D design
  • 100% Full Inspection and Test
  • With RoHS compliance
  • Can be IEC/UL/CE Marking/ISO9001/VDE/CSA/CPR Certification
  • IPC/WHMA-A-620 Process Standard
  • Waterproof, Low Smoke Halogen-Free, Anti-UV Cable, Acid andalkali-resistant cable are available
