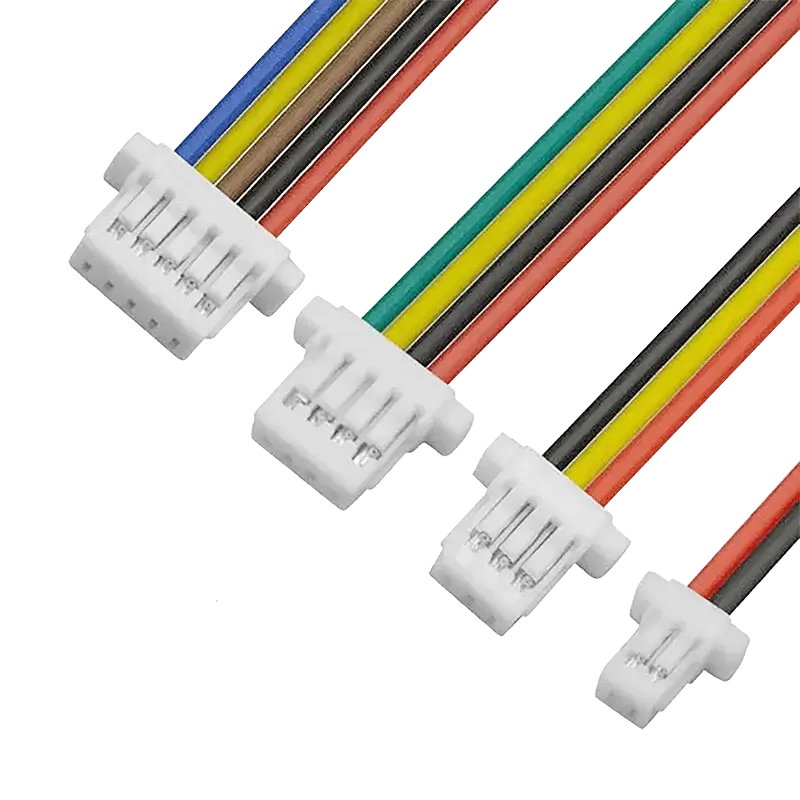

Wire Harness JST SH Connector 1.0mm pitch Terminal

Automotive Cable Assemblies / Wire-to-Board01235

The JST SH Connector 1.0mm pitch Terminal is the world's first 1.0 mm pitch crimp style connector.

Key Features

  • Compact and space-saving
  • Housing lance system
  • High-pressure contact design for a more assured connection
  • Socket compatible with IDC style SR connector

Description

The JST SH Connector 1.0mm Pitch Terminal is the world’s first crimp-style connector with a 1.0 mm pitch, designed for wire-to-board applications and optimized for wire harness solutions. This compact, low-profile connector is ideal for space-constrained environments, enhancing design flexibility across a range of electronic applications.

Featuring an innovative housing lance, it ensures reliable contact engagement during the insertion process, especially effective with smaller-diameter wires. The high-pressure contact design guarantees exceptional contact reliability, providing a secure and dependable connection. Compatible with IDC-style SR connectors, the JST SH Connector brings versatility and assurance to demanding wire harness applications.

Specification

Item Specification
Compatible JST SH connector
Pitch - Mating Interface 1.0mm
Circuits 2-16 pins
Current rating 1 A AC/DC (AWG #26)
Voltage rating 50 V AC/DC
Temperature range -25°C to +85°C (including temperature rise in applying electrical current)
Contact resistance Initial value: 20 mΩ max.
After environmental tests: 40 mΩ max.
Insulation resistance 100 MΩ min.
Withstanding voltage No breakdown or flashover while applying 500 VAC for one minute.
Applicable wire range Conductor size: AWG #32 to AWG #28
Insulation O.D.: ϕ 0.4 mm to ϕ 0.8 mm

Example part numbers

Numbers in bold can be changed to order connectors with a different number of positions. Can be customized according to specific requirements.

Content Part Number
Contact AWG 28-32 SSH-003T-PO.2
Housing 2 position SHR-04V-S
Housing 2 position (with wings) SHR-04V-S-B
Header 2 position SMD BM02B-SRSS-TB(LF)(SN)
Hand crimp tool (with feeder) WC-SH2832
Hand crimp tool YRS-859
Wire Harness assembly Various SH and SH compatible connector parts
Wire Harness assembly Various SH and SH compatible connector parts

Applications:

  • Consumer electronics
  • Low-profile devices
  • Industrial automation systems
  • Medical Devices
  • Telecommunications

Tailored Solutions

  • Accept OEM/ODM design
  • Accept Small MOQ and Trial order
  • Engineering support in 2D or 3D design
  • 100% Full Inspection and Test
  • With RoHS compliance
  • Can be IEC/UL/CE Marking/ISO9001/VDE/CSA/CPR Certification
  • IPC/WHMA-A-620 Process Standard
  • Waterproof, Low Smoke Halogen-Free, Anti-UV Cable, Acid andalkali-resistant cable are available
