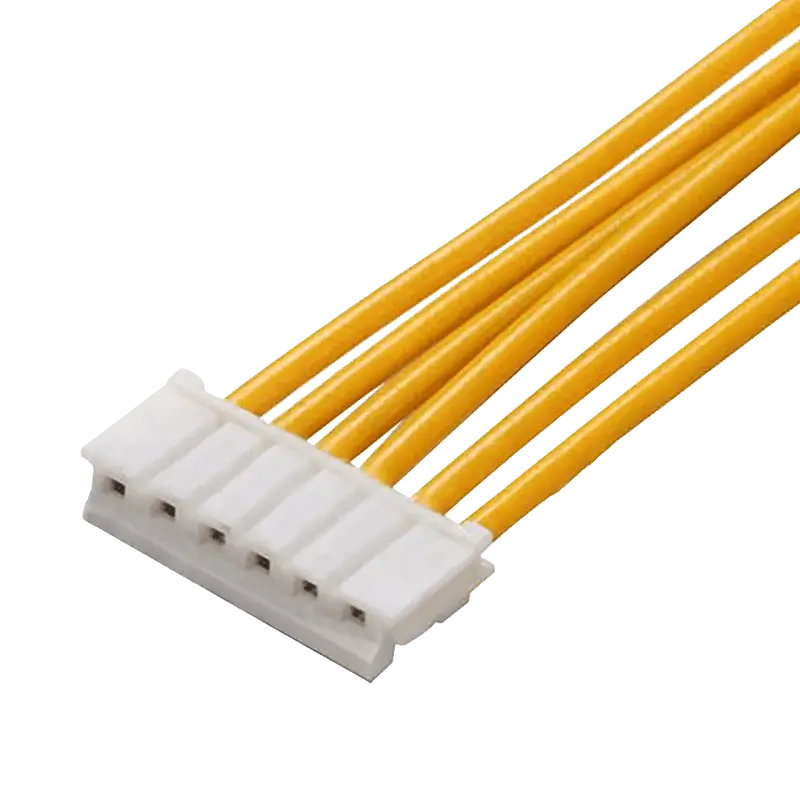

Wire Harness JST EH Connector 2.5mm pitch Terminal

Automotive Cable Assemblies / Wire-to-Board0655

The JST EH 2.5mm pitch connector is a 2.5 mm pitch low-profile, wire-toboard connector that meets the needs of high density PCB requirements and provides design flexibility in all sorts of electronic devices.

Key Features

  • Low-profile, space-saving design
  • High-reliability contacts
  • Shaped to prevent misinsertion
  • Excellent workability in the wire harness assembly and mating process

Description

The JST EH 2.5mm Pitch Connector is a low-profile, highly reliable wire-to-board connector designed to meet the demands of high-density PCB applications. With a compact assembled board height of just 8.1mm and a thickness of 3.8mm, it provides design flexibility and space-saving benefits, making it ideal for modern electronic devices. The connector's contact design ensures a high-reliability connection, while the EH series offers excellent harness workability, making it easy to mate and unmate.

This versatile connector is perfect for low-cost consumer electronics and compact devices, providing a robust solution for applications where both reliability and space efficiency are crucial.

Specification

Item Specification
Compatible JST EH connector
Pitch - Mating Interface 2.5mm
Circuits 2-16 pins
Current rating 3 A AC/DC (AWG #22)
Voltage rating 250 V AC/DC
Temperature range -25°C to +85°C (including temperature rise in applying electrical current)
Contact resistance Initial value: 10 mΩ max.
After environmental tests: 20 mΩ max.
Insulation resistance 1,000 MΩ min.
Withstanding voltage No breakdown or flashover while applying 800 VAC for one minute.
Applicable wire range Conductor size: AWG #32 to AWG #22
Insulation O.D.: ϕ 0.5 mm to ϕ 1.9 mm
Applicable PC board thickness 0.8 mm to 1.6 mm
Wire Harness assembly Various EH and EH compatible connector parts
Wire Harness assembly Various EH and EH compatible connector parts

Example part numbers

Numbers in bold can be changed to order connectors with a different number of positions. Can be customized according to specific requirements.

Content Part Number
Contact AWG 22-30 SEH-001T-P0.6N
Housing 3 position EHR-3
Header 3 position vertical B3B-EH-A(LF)(SN)
Header 3 position horizontal S3B-EH(LF)(SN)
Hand crimp tool WC-260

Applications:

  • Consumer electronics
  • Low-profile devices
  • Home automation systems

Tailored Solutions

  • Accept OEM/ODM design
  • Accept Small MOQ and Trial order
  • Engineering support in 2D or 3D design
  • 100% Full Inspection and Test
  • With RoHS compliance
  • Can be IEC/UL/CE Marking/ISO9001/VDE/CSA/CPR Certification
  • IPC/WHMA-A-620 Process Standard
  • Waterproof, Low Smoke Halogen-Free, Anti-UV Cable, Acid andalkali-resistant cable are available
