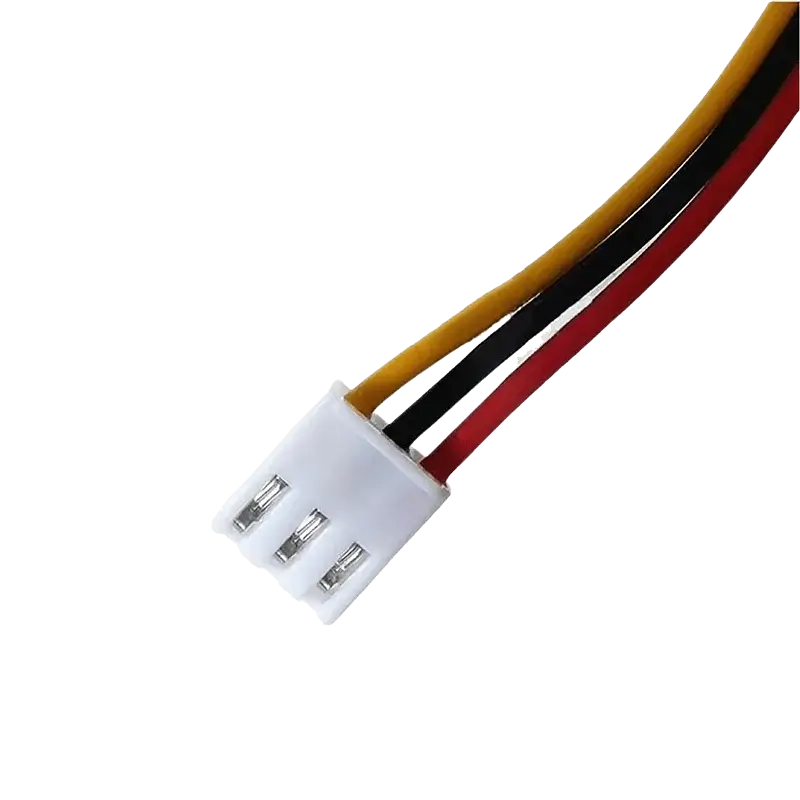

Wire Harness Molex KK Connectors KK396 3.96mm pitch Terminal

Automotive Cable Assemblies / Wire-to-Board0689

Key Features

  • Friction lock headers for secure connections
  • Polarizing features to prevent mismating
  • Available with kinked PC tails for improved stability
  • Multiple terminal designs with enhanced contact points
  • Options for vertical and right-angle headers
  • Compatible with top, bottom, and right-angle PCB receptacles
  • Ensures reliable mating under various conditions
  • Optimized for high-current applications
  • Excellent contact integrity with the PCB
  • Designed to perform in high-vibration environments
  • Flexible design options to meet specific application needs

Description

RichCables offers custom wire harness solutions featuring Molex KK396 3.96mm pitch connectors, designed for exceptional performance and reliability. These connectors, recognized as a standard wire-to-board connection solution, serve as a larger counterpart to the KK .100 connectors. Widely used in a variety of applications, particularly within switching power supplies, the Molex KK396 connectors are typically found on both the primary and secondary sides of the circuitry.

Our expertise spans both wire-to-board and board-to-board connections, enabling us to provide tailored solutions that meet your specific requirements. The Molex KK396 connectors are available in configurations with 2-15 circuits for single-row options and up to 36 circuits for dual-row connectors. In addition, alternative connectors with the same 0.156" (3.96mm) pitch are available from numerous manufacturers, providing flexibility and ensuring compatibility across a wide range of applications.

These connectors come with two types of contacts: the standard contact and the "trifurcon" variant. The trifurcon contact, which features three contact points, enhances the current-carrying capacity and is ideal for applications requiring increased electrical performance.

Specification

Item Specification
Compatible Molex KK connector/KK396
Pitch - Mating Interface 3.96mm
Circuits 2-20 pins
Current Rating 13 A AC/DC (AWG #22)
Voltage Rating 600 V AC/DC
Temperature Range -40°C to +105°C (including temperature rise during electrical current application)
Contact Resistance Initial value: 20 mΩ max.
After environmental tests: 30 mΩ max.
Insulation Resistance 1000 MΩ min.
Withstanding Voltage No breakdown or flashover while applying 1000 VAC for one minute.
Applicable Wire Range Conductor size: AWG #22 to AWG #30
Insulation O.D.: ϕ 0.6 mm to ϕ 1.4 mm
Wire Harness assembly Various KK396 and KK 156 compatible connectors parts
Wire Harness assembly Various KK396 and KK 156 compatible connectors parts

Applications:

  • Industrial Automation
  • Medical Devices
  • Automotive
  • Telecommunications
  • Consumer Electronics

Tailored Solutions

  • Accept OEM/ODM design
  • Accept Small MOQ and Trial order
  • Engineering support in 2D or 3D design
  • 100% Full Inspection and Test
  • With RoHS compliance
  • Can be IEC/UL/CE Marking/ISO9001/VDE/CSA/CPR Certification
  • IPC/WHMA-A-620 Process Standard
  • Waterproof, Low Smoke Halogen-Free, Anti-UV Cable, Acid andalkali-resistant cable are available
