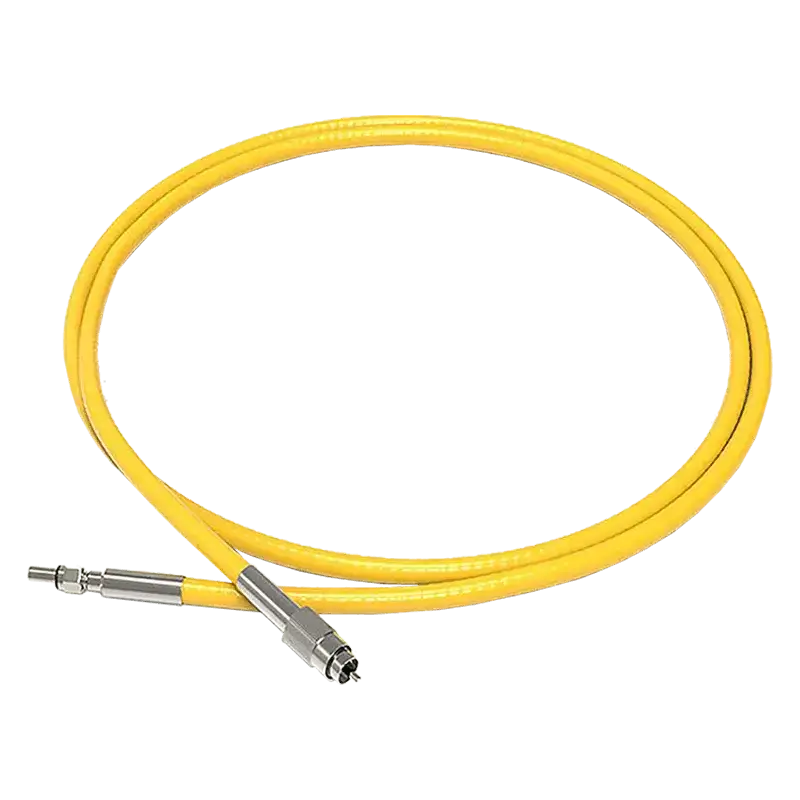

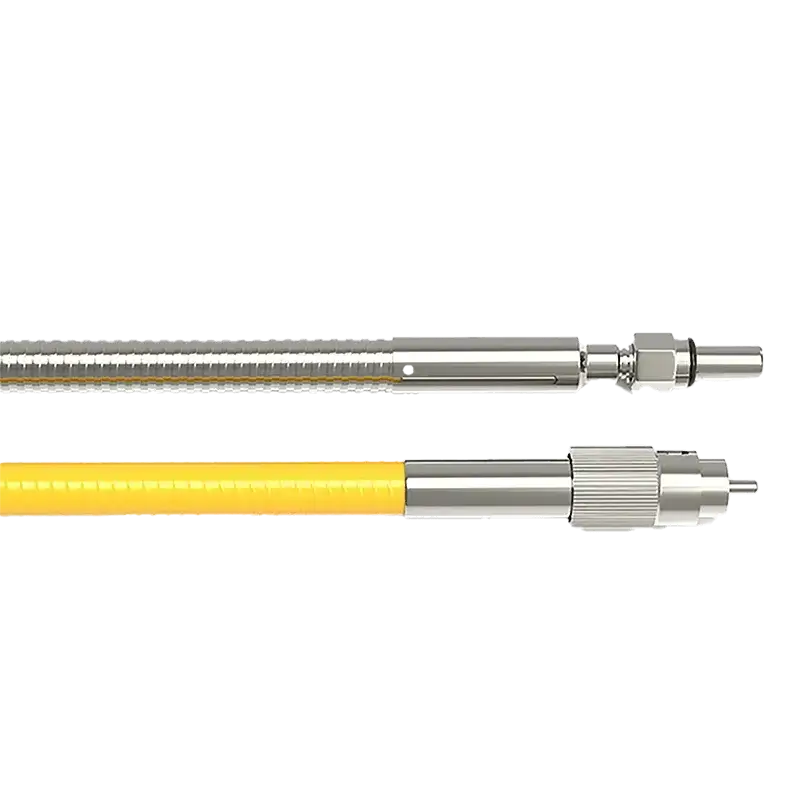

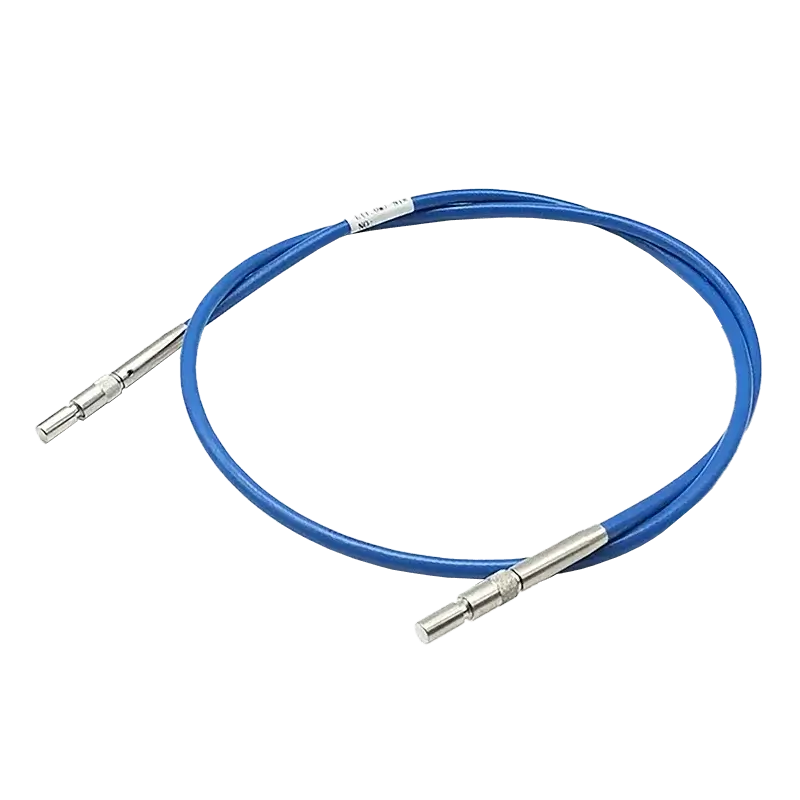

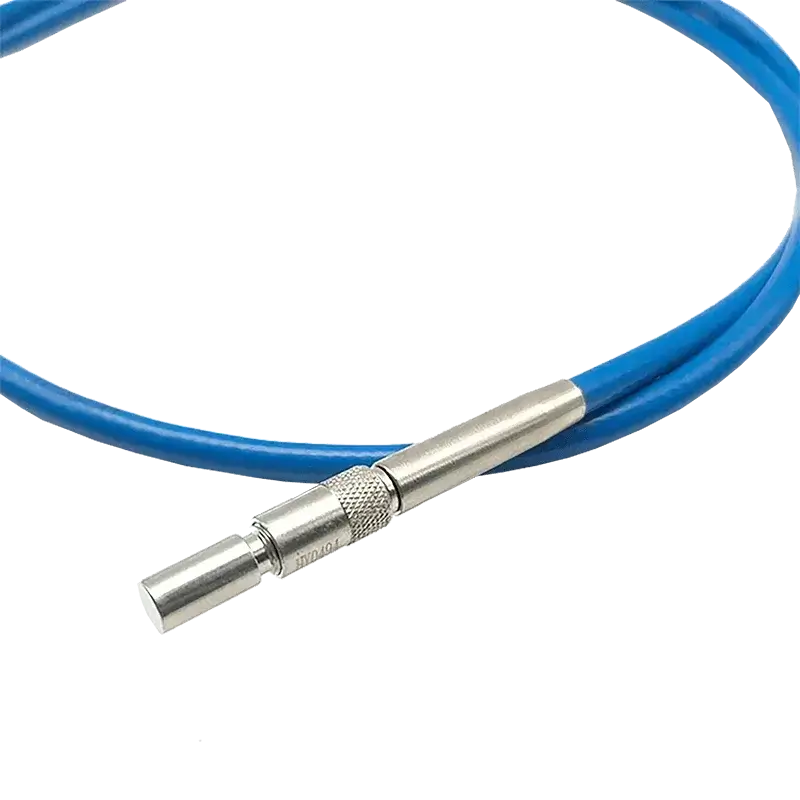

SMA905 High Power Laser Quartz Optical Fiber Patch Cord

Fiber Optic Cable Assemblies0658
It utilizes SMA905 connectors and quartz optical fiber, which offers high durability and optimal performance for transmitting high-energy laser beams or light signals.

  • High-Power Handling Capability
  • SMA905 Connectors
  • Quartz Optical Fiber
  • Precision-polished end faces
  • High-Temperature Resistance
  • Optional anti-reflective coating

Introduction

SMA905 High Power Laser Quartz Optical Fiber Patch Cord is a specialized fiber optic cable designed to handle high-power laser transmission in various industrial, medical, and scientific applications. It utilizes SMA905 connectors and quartz optical fiber, which offers high durability and optimal performance for transmitting high-energy laser beams or light signals.

Key Features

  • High-Power Handling Capability: Built to withstand and transmit high-power laser energy with minimal attenuation or damage.
  • SMA905 Connectors:Designed for precision alignment, ensuring low signal loss and high reliability.Features robust metal construction for durability in demanding environments.

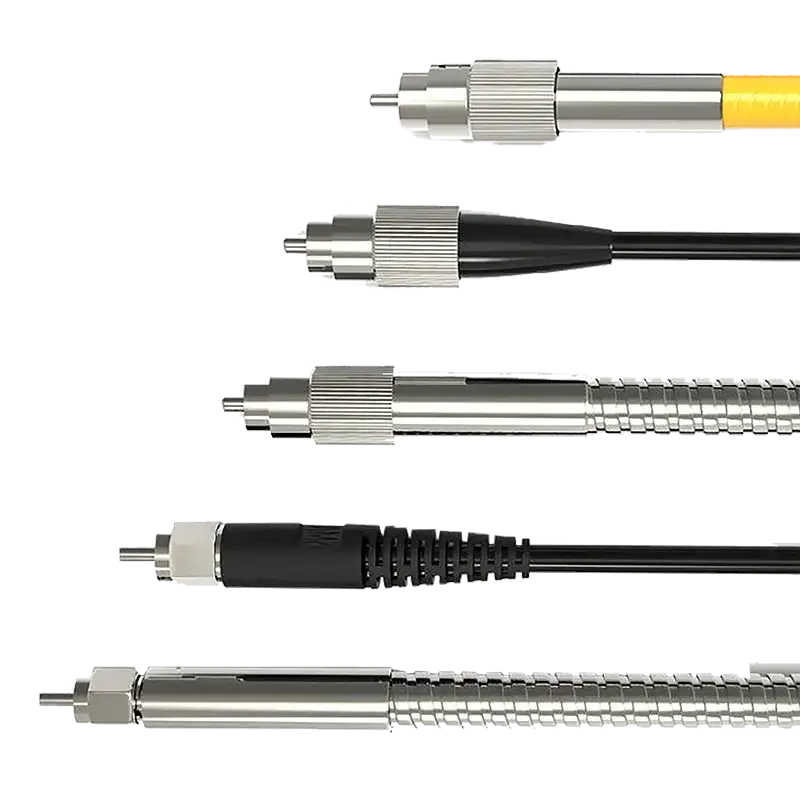

    • SMA905 (with aramid crimp ring)

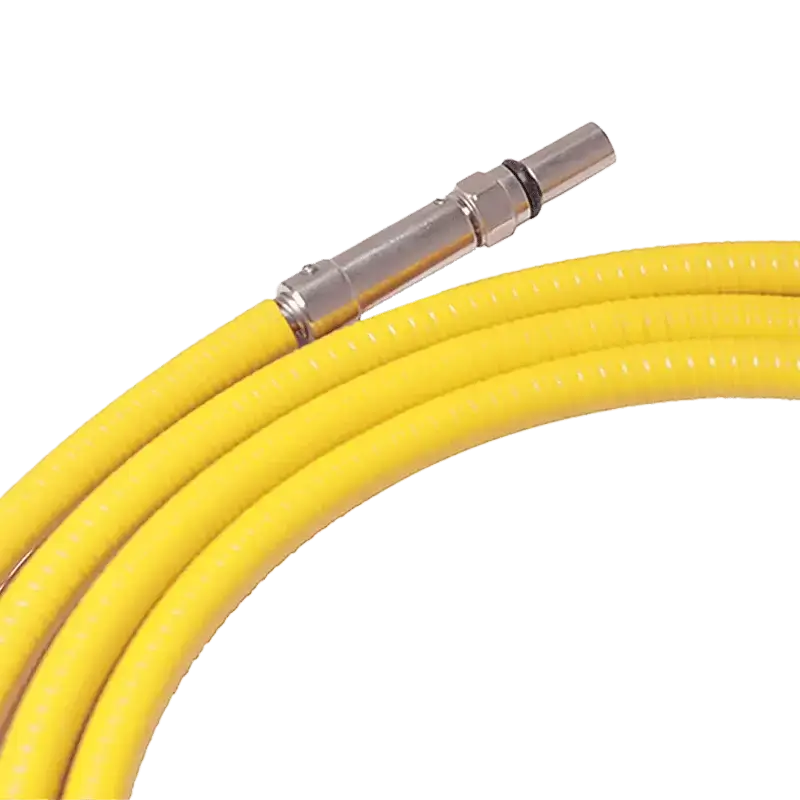

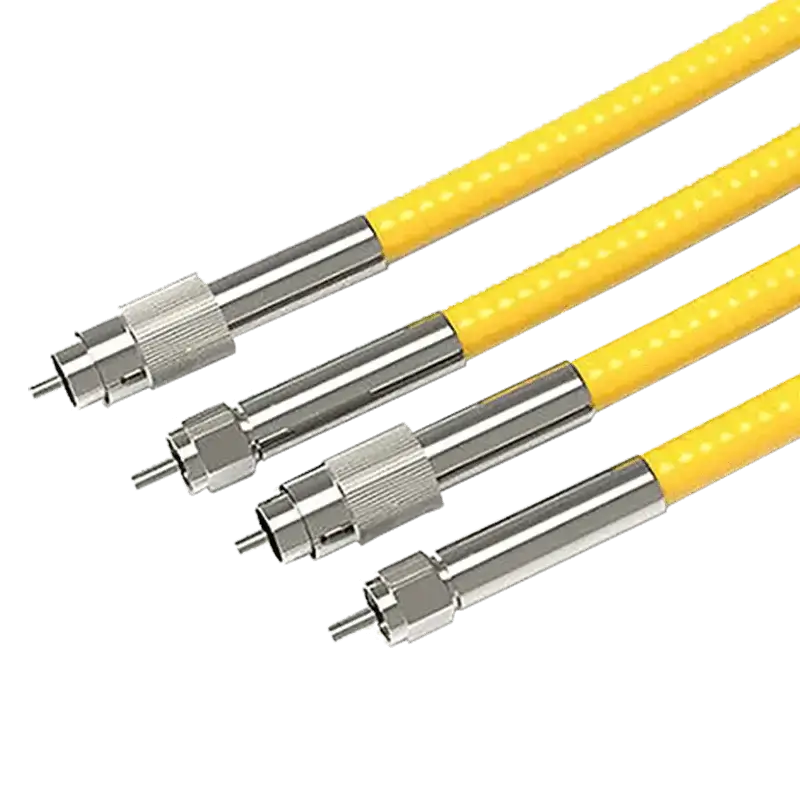

    • HPSMA905 (without aramid crimp ring):Slotted or Non-Slotted Ferrule End Faces, and Tail options include a 3.0mm sleeve or customizable designs.
  • Quartz Optical Fiber:Provides excellent transmission performance for UV, visible, and infrared wavelengths.Resistant to high temperatures and harsh operating conditions.
  • Customizable Specifications:Available in various lengths, core diameters, and connector options to suit specific requirements.
  • Enhanced Durability:Protective outer jacket and ruggedized design for long-term usage in tough environments.

Specification

SMA905 Connector Specs
Construction SMA905 HPSMA905
With aramid crimp ring W/O aramid crimp ring
Ferrule Material Ceramic Stainless steel White copper
Ferrule Type ---- W/O groove W/O groove With groove
Ferrule Inner Diameter (μm) 80~2600 120~2000 200~1500
Nut Type Round or Hexagonal Round or Hexagonal
Nut Material Copper plated nickel
Bare Fiber Clamp NO Optional
Tail Boot Size (mm) 0.9/2.0/3.0 3.0 or customized metal boot
Dust Cap Type Rubber or metal spiral
Ferrule Diameter (mm) 3.17
Ferrule Length (mm) 9.8

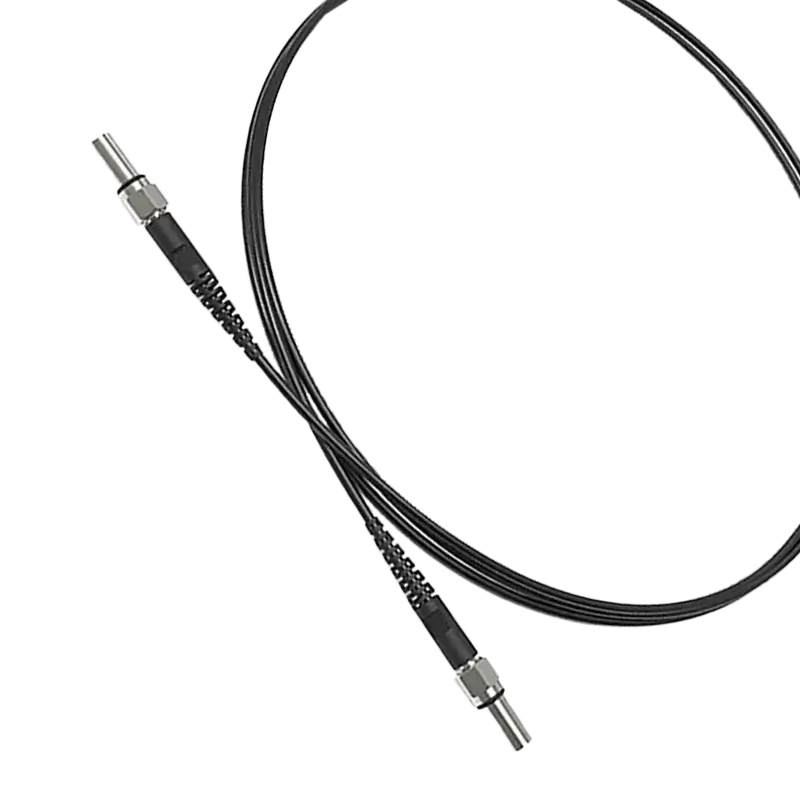

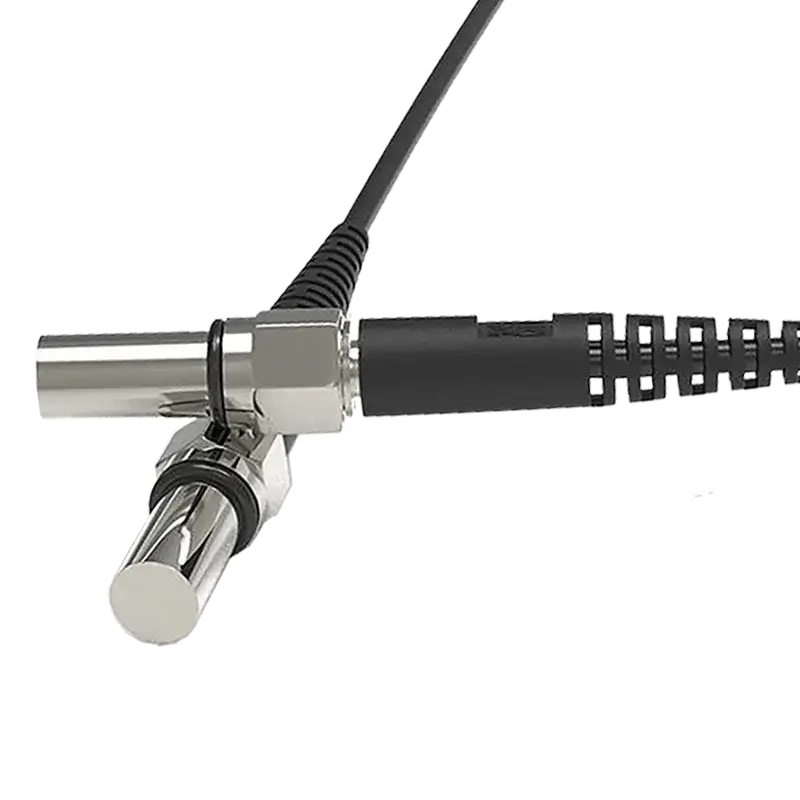

UV Ultraviolet Quartz Fiber
Specification UV100 UV200 UV300 UV400 UV600 UV800 UV1000
Fiber Diameter (μm) 100 200 300 400 600 800 1000
Cladding Diameter (μm) 110 220 330 440 660 840 1050
Coating Diameter (μm) 245 320 520 700 960 1100 1600

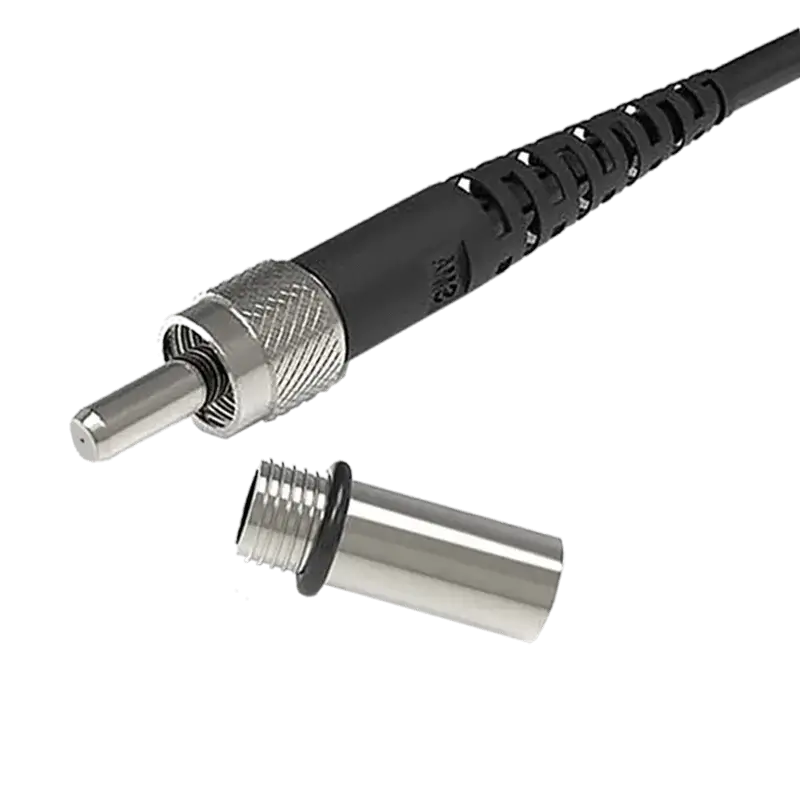

Armored Cable Diameter (mm) 3.0 black armored tube / 5.0 or 6.0 full stainless metal armored tube
NA 0.22±0.02
Operating Band 200-1200nm
Fiber Core Material Pure quartz (HIGH OH)
Cladding Material Fluorine-doped silica glass
Coating Material Acrylic resin
Working Temperature -40~+85℃
Connector Types FC, ST, SMA905
Cable Length 1M/2M/3M/Customizable
Transmission Rate ≥97%
Radius of Curvature Long-term Radius of Curvature: 200D (D is the outer diameter of clad)
Short-term Radius of Curvature: 100D (D is the outer diameter of clad)

Applications

  • Medical Lasers: Used in surgical instruments, therapeutic treatments, and diagnostic equipment.
  • Industrial Processing: Ideal for cutting, welding, and material processing where precise and powerful lasers are required.
  • Scientific Research: Used in spectroscopy, photonics experiments, and laser-based studies.
  • Communication: Supports data transmission in optical communication systems.
